Autoclave & Sterilizer arrow Vertical Autoclave arrow LS-B35~100L-II

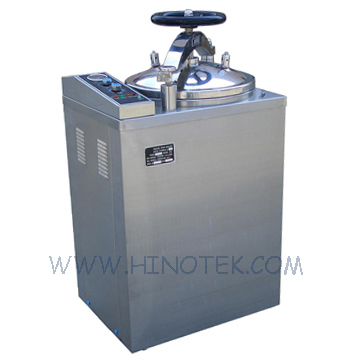

MODEL LS-B35/50/75/100L-II

 (HAND ROUND FULL AUTOMATICLY)



MODEL LS-B35/50/75/100L-II
(HAND ROUND FULL AUTOMATICLY)

Characteristics:
1.Fully stainless steel structure.
2.Hand wheel type of quick-open door structure.
3.Door safety lock system.
4.Automatically controlled by computer.
5.Digital display of working status,touch of key.
6.Over temperature&over pressure auto-protection.
7.Steam-water inner circulation system: No steam discharge, and the environment for sterilizing will be clean and day.
8.Self-inflating type seal.
9.Safe protection of water lacking.
10.Possible to install drying system according request.
11.Automatically shut off with beep reminding after sterilization.
12.With two stainless steel sterilizing baskets.

Specification:
Model
LS-B35L-II
LS-B50L-II
LS-B75L-II
LS-B100L-II
Valid volume
35L(φ318*450mm)
50L(φ340*550mm)
75L(φ400*600mm)
100L(φ440*650mm)
working pressure
0.22MPa
0.14MPa
Working temperature
134 Deg.C
126 Deg.C
Max working pressure
0.23 Mpa
0.165 Mpa
Heat average
<=±1 Deg.C
Timer
0~99min or 0~99hour
Adjustment of temperature
0~134 Deg.C
0~126 Deg.C
Power
2.5KW/AC220V 50Hz
3KW /AC220V 50Hz
4.5KW /AC220V 50Hz
Overall dimension
600*410*1030(mm)
650*410*1140(mm)
690*470*1140(mm)
730*510*1270(mm)
Transport dimension
730*500*1170(mm)
730*500*1290(mm)
760*550*1290(mm)
820*600*1380(mm)
N/G. W:
96Kg/77Kg
102Kg/83Kg
120Kg/98Kg
135/110Kg



:
pic
