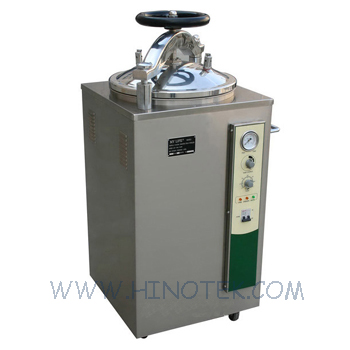

MODEL LS-BXL-I |
(HAND ROUND AUTOMATIC AUTOCLAVE) |
Including LS-B35/50/75/100L-I |
| |
|
| |
| Characteristics: |
| 1.Fully stainless steel structure. |
| 2.Hand wheel type of quick-open door structure. |
| 3.Pressure safety lock. |
| 4.Indicator light indicates working state. |
| 5.Over temperature&over pressure auto-protection. |
| 6.Double scale indication pressure gauge. |
| 7.Self-inflating type seal. |
| 8.Safe protection of water lacking. |
| 9.Automatically shut off with beep reminding after sterilization. |
| 10.Easy to operate，safe and reliable. |
| 11.With two stainless steel sterilizing baskets. |
| |
| Specification: |
| Model | LS-B35L-I | LS-B50L-I | LS-B75L-I | LS-B100L-I | | Valid volume | 35L(φ318*450mm) | 50L(φ340*550mm) | 75L(φ400*600mm) | 100L(φ440*650mm) | | working pressure | 0.22MPa | 0.14MPa | | Working temperature | 134 Deg.C | 126 Deg.C | | Max working pressure | 0.23 Mpa | 0.165MPa | | Heat average | <=±1 Deg.C | | Timer | 0~60min | | Adjustment of temperature | 105~134 Deg.C | 105~126 Deg.C | | Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V 50Hz | 4.5KW /AC220V 50Hz | | Overall Dimension(mm) | 450*450*1010 | 510*470*1130 | 560*560*1120 | 540*560*1250 | | Transport dimension | 570*550*1150 | 590*580*1280 | 650*630*1280 | 680*630*1370 | | N/G. W: | 72Kg/56Kg | 88Kg/68Kg | 100Kg/80Kg | 110Kg/85Kg |
|
| |
