Autoclave & Sterilizer arrow Vertical Autoclave arrow LS-B35~100L-I (Automatic)

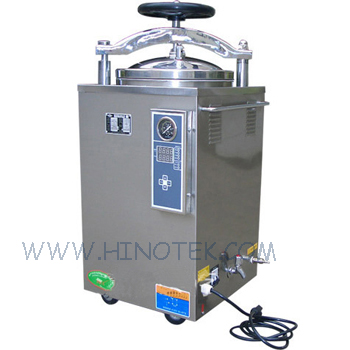

MODEL LS-B35L-I/50L-I/75L-I/100L-I(Automatic)

(DIGITAL DISPLAY AUTOMATIC AUTOCLAVE)


Characteristics:
1.Fully stainless steel structure.
2.Hand wheel type of quick-open door structure.
3.Door safety lock system.
4.Digital display of working status,touch of key.
5. Auto discharge the cool air, and steam discharging automatically after sterilization.
6.Over temperature&over pressure auto-protection.
7.Safe protection of water lacking
8.Self-inflating type seal.
9.Automatically shut off with beep reminding after sterilization
10.With two stainless steel sterilizing baskets

Specification:
Model
LS-B35L-I
(Automatic)
LS-B50L-I
(Automatic)
LS-B75L-I
(Automatic)
LS-B100L-I
(Automatic)
Valid volume
35L(φ318*450mm)
50L(φ340*550mm)
75L(φ400*600 mm)
100L(φ440*650 mm)
working pressure
0.22MPa
0.14 MPa
Working temperature
134 Deg.C
126Deg.C
Max working pressure
0.23 Mpa
0.165 Mpa
Heat average
<=±1Deg.C
Timer
0~99min or 0~99hour
Adjustment of temperature
105~134 Deg.C
105~126 Deg.C
Power
2.5Kw/AC220V 50Hz
3Kw/AC220V 50Hz
4.5Kw/AC220V 50Hz
Overall dimension (mm)
450*450*1010
510*470*1130
560*560*1120
540*560*1250
Transport dimension(mm)
570*550*1150
590*590*1280
650*630*1280
680*630*1370
N/G. W:
72Kg/56Kg
88Kg/68Kg
100Kg/80Kg
110Kg/85Kg

:
