Autoclave & Sterilizer arrow Vertical Autoclave arrow LS-B120~150L

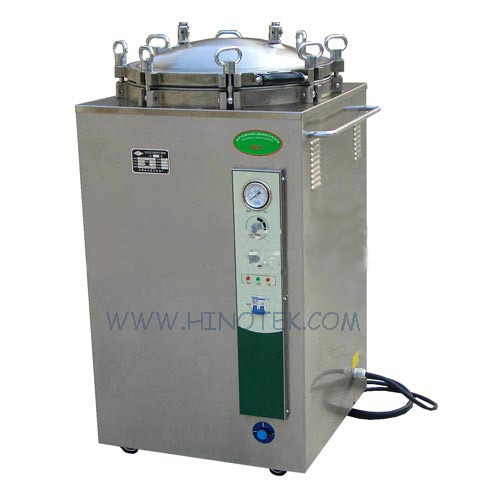

MODEL LS-B120L/150L

(VERTICAL PRESSURE STEAM STERILIZER)

Characteristics:
1. Indicator light indicates working state.
2. Over temperature&over pressure auto-protection.
3. Double scale indication pressure gauge.
4. Safe protection of water lacking.
5. With the below exhaust structure, wich is convenient to exhause the cold air.
6. Automatically shut off with beep reminding after sterilization.
7. Fully stainless steel structure.
8. Easy to operate,safe and reliable.
9. With two stainless steel sterilizing baskets.

Specification:
MODEL
LS-B120L
LS-B150L
Valid volume
120L(φ480*660mm)
150L(φ510*740mm)
working pressure
0.22MPa
Working temperature
134 Deg.C
Max. working pressure
0.23 Mpa
Heat average
<=±1℃
timer
0~60min
Adjustment of temperature
105~134 Deg.C
Power
6Kw/AC220V 50Hz (110V/60HZ option)
Overall dimension
600*640*1140(mm)
670*690*1130(mm)
Transport dimension
730*730*1270(mm)
760*760*1270(mm)
N/G. W:
125Kg/ 100Kg
135Kg/110Kg

:
