Autoclave & Sterilizer arrow Table Top Autovlave arrow YXQ.DY.250B35

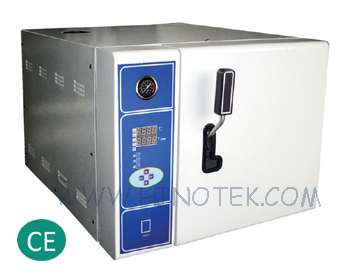

YXQ.DY.250B35/ YXQ.DY.250B50

(fully automatic microcomputer type)

Characteristics:
1. For 4~6 minutes rapidly sterilizing
2. Digital display of working status, touch key
3. With 3 fixed cycles of sterilizing program and adjustable program.
4. The whole process of water adding, temperture rising, sterilizing, drying steam discharging controlled automatically.
5. Steam-water inner circulation system: no steam discharge, and the enviroment for sterilizing will be clean & dry.
6. Exhaust the cool air automatically.
7. Door safety locl system.
8. With four stainless steel sterilizing plates.
9. The chamber of the sterilizer is made of stainless steel.
10. Automatically shut off with beep reminding after sterilization.
11. With drying function.

Specification:
MODEL
YXQ.DY.250B35
YXQ.DY.250B50
Sterilizing chamber volume:
35L ( Φ300×500mm)
50L ( Φ340×550mm)
Maximum working pressure
0.22 MPa
Maximum working temperature
134 Deg.C
Adjustment of temperature:
105 Deg.C ~ 134 Deg.C
Timer
1-99 min
Chamber temperature equal
±1 Deg.C
Source power
2.7KW/AC 220V50Hz
Sterilzing Plate
400*200*30 mm (4 piece)
500*250*30 mm (4 piece)
Dimension
730*550*510mm
770*600*540mm
package dimension
810*680*650 mm
880*730*700 mm
N/G. W
80 / 95 Kg
93 / 112 Kg

:
