Autoclave & Sterilizer arrow Table Top Autovlave arrow YXQ.DY.250B20/25

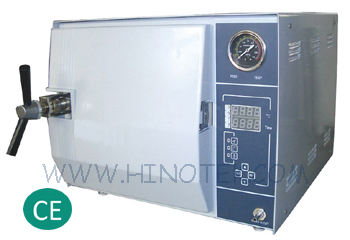

YXQ.DY.250B20/25

 fully automatic microcomputer type
This product is a mini table type pulse vacuum sterilizer with rapid cooling system. It is safe and auto-controlled by computer. Its sterilizering temperature range is 105 to 134℃, and timer range is 1 to 99minutes.

Characteristics:
1. For 4~6 minutes rapidly sterilizing
2. Digital display of working status, touch key
3. With 3 fixed cycles of sterilizing program and adjustable program.
4. The whole process of water adding, temperture rising, sterilizing, drying steam discharging controlled automatically.
5. Steam-water inner circulation system: no steam discharge, and the enviroment for sterilizing will be clean & dry.
6. Exhaust the cool air automatically.
7. Door safety locl system.
8. With four stainless steel sterilizing plates.
9. The chamber of the sterilizer is made of stainless steel.
10. Automatically shut off with beep reminding after sterilization.
11. With drying function.


Specification:
             MODEL
YXQ.DY.250B20
YXQ.DY.250B25
Sterilizing chamber volume:
20L ( Φ250*420mm)
25L ( Φ250*520mm)
Maximum working pressure
0.22 Mpa
Maximum working temperature
134 Deg.C
Adjustment of temperature:
105 Deg.C ~ 134 Deg.C
Timer
1-99 min
Chamber temperature equal
± 1 Deg.C
Source power
1.5KW/AC 220V50Hz
Sterilizing plate
340*200*30 mm (3 piece)
400*200*30 mm (3 piece)
Dimension
480*480*380mm
580*480*384mm
package dimension
720*580*500mm
800*580*500mm
N/G. W
40/43 Kg
45/50 Kg

:
