Autoclave & Sterilizer arrow Table Top Autovlave arrow YXQ.DY.250A35

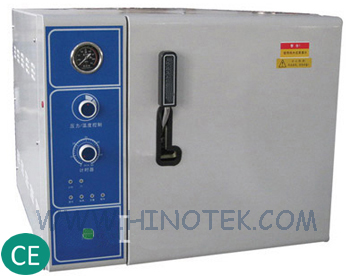

YXQ.DY.250A35/50


Characteristics:
1. Indicator light indicates working state
2. For 4~6 minutes rapidly sterilizing
3. Sterilizing temperature and time can be preset.
4. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
5. Over temperature & over pressure auto-protection
6. Exhaust the cool air automatically
7. Door safety lock system
8. With four stainless steel sterilizing plates
9. The chamber of the sterilizer is made of stainless steel.
10 Automatically shut off with beep reminding after sterilization

Specification:
       MODEL
YXQ.DY.250A35
YXQ.DY.250A50
Sterilizing chamber volume:
35L ( Φ300*500mm)
50L ( Φ340*550mm)
Maximum working pressure
0.22 MPa
Maximum working temperature
134 Deg.C
Adjustment of temperature:
105 Deg.C ~ 134 Deg.C
Timer
0-60 min
Chamber temperature equal
± 1 Deg.C
Source power
2.7KW/AC 220V50Hz (AC110V 50Hz)
Sterilizing plate
400*200*30mm (4 piece)
500*250*30mm (4 piece)
Dimension
730*550*510mm
770*600*540mm
Package dimension
820*680*650mm
880*730*700mm
N/G. W
80 / 95 kg
93 / 112 kg

:
