Autoclave & Sterilizer arrow Table Top Autovlave arrow YXQ.DY.250A20

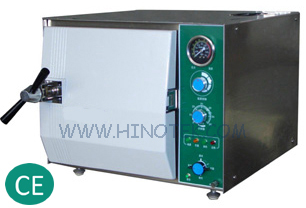

YXQ.DY.250A20/25


Characteristics:
Characteristics:
1. Indicator light indicates working state
2. For 4~6 minutes rapidly sterilizing
3. Sterilizing temperature and time can be preset.
4. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
5. Over temperature & over pressure auto-protection
6. Exhaust the cool air automatically
7. Door safety lock system
8. With three stainless steel sterilizing plates
9. Fully stainless steel strycture
10 Automatically shut off with beep reminding after sterilization

Specification:
MODEL
YXQ.DY.250A20
YXQ.DY.250A25
Sterilizing chamber volume:
20L (φ250X 420mm)
25L (φ250X 520mm)
 Maximum working pressure
0.22 MPa
Maximum working temperature
134 Deg.C
Adjustment of temperature:
105 Deg.C ~ 134 Deg.C
Timer
0-60 min
Chamber temperature equal
± 1 Deg.C
Source power
1.5KW/AC 220V 50Hz
sterilizing plate
340*200*30mm (3 piece)
400*200*30mm (3 piece)
Dimension
480*480*384 mm
580*480 *384 mm
package dimension
700*580*500 mm
800*580*500 mm
 N/G. W
38 / 43 Kg
44 / 50 Kg

:
