Autoclave & Sterilizer arrow Table Top Autovlave arrow YXQ.DY.250A-III 20/25

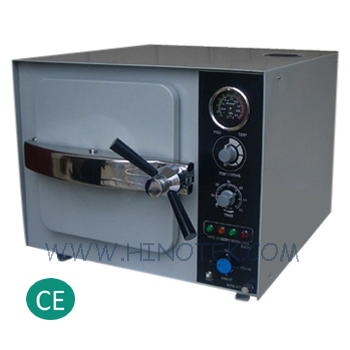

YXQ.DY.250A-Ⅲ20/25


Characteristics:
1. Indicator light indicates working state
2. For 4~6 minutes rapidly sterilizing
3. Sterilizing temperature and time can be preset.
4. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
5. Over temperature & over pressure auto-protection
6. Safe protection of water lacking
7. Exhaust the cool air automatically
8. With three stainless steel sterilizing plates
9. The chamber of the sterilizer is made of stainless steel
10. Automatically shut off with beep reminding after sterilization

Specification:
MODEL
YXQ.DY.250A-III20
YXQ.DY.250A-III25
Sterilizing chamber volume:
20L (φ250X 420mm)
25L (φ250X 520mm)
Maximum working pressure
0.22 MPa
Maximum working temperature
134 Deg.C
Adjustment of temperature:
105 Deg.C ~ 134Deg.C
 Timer
0-60 min
Chamber temperature equal
± 1Deg.C
 Source power
1.5KW/AC 220V 50Hz(AC110V 60Hz)
sterilizing plate
340*200*30 mm (3piece)
400*200*30 mm (3piece)
Dimension
480*480*384 mm
580*480*384 mm
Package dimension
720*580*500mm
800*580*500mm
N/G. W
40/44 kg
45/50 kg

:
