Autoclave & Sterilizer arrow Table Top Autovlave arrow YXQ.DY.250A-I 25

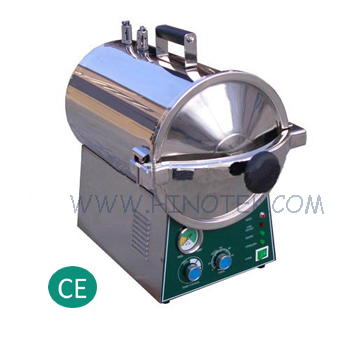

YXQ.DY.250A-I 25


USE:
Our sterilizer is a table type in safety and auto-controlled, which is designed for the unit of medical health, pharmacy, science and technology etc. And mostly suitable for sterilizing of surgical,
dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.

Characteristics:
1. Sterilizing course: Automatic sterilizationcontrolled by computer, easy to operate.
2. Maximum temperature: up to 134 Deg.C, suitable for 4-6 minutes flash sterilizing.
3. Safe protection of water lacking.
4. With over-temperature, over-pressure auto-protect device.
5. After sterilization it will automatically cut the power and then alarm.
6. Fully stainless steel structure.


Specification:
      MODEL
YXQ.DY.250A-I 25
Sterilizing chamber volume:
25L (φ270 * 410mm)
Maximum working pressure
0.22 MPa
Maximum working temperature
134 Deg.C
Adjustment of temperature:
105 Deg.C ~ 134 Deg.C
Timer
0-60 min
Chamber temperature equal
+/- 1 Deg.C
Source power
1.5KW/AC 220V 50Hz
Sterilizing plate
340*200*30mm (3 piece)
Dimension
560*350*500  mm
Exterior package dimension
620*410*570  mm
N/G. W
18/20 Kg

:
