Autoclave & Sterilizer arrow Table Top Autovlave arrow YX-280-I

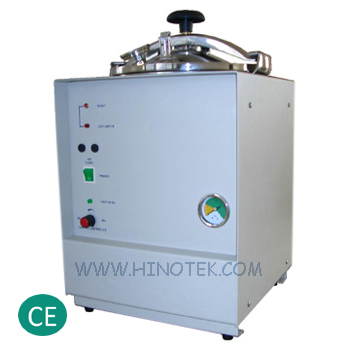

YX-280-I


Characteristics:
1. Sterilizing course: Automatic sterilization controlled by computer, easy to operate.
2. Maximum temperature: up to 121 Deg.C, suit for 4~6 minutes rapidly sterilizing.
3. The drum is netting wire type.
4. With over-temperature, over-pressure auto-protect device.
5. The chamber of the sterilizer is made of stainless steel.

Specification:
MODEL
YX-280-I
Sterilizing chamber volume
20L (φ270*340mm)
Maximum working pressure
0.11 Mpa
Maximum working temperature
121 Deg.C
Adjustment of temperature:
105 Deg.C ~ 121 Deg.C
Chamber temperature equal
± 1 Deg.C
Source power
1.5KW/AC 220V50Hz
Sterilizing plate
φ235*255 mm
Dimension
360*350*525 mm
package dimension
420*420*630 mm
N/G.W
27 / 29 Kg

:
