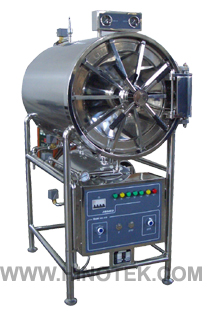

WS-280YDC WS-200YDC WS-150YDC | | | Characteristics: | | 1. Sterilizing course automatic sterilization controlled, easy to operate. | | 2. With drying function, suitable dressing drying. | | 3. With over-temperture, over-pressure auto-protect device. | | 4. The door opening mechanism cannot be operated untill the pressure in the chamber is reduced to 0.027Mpa. It can't be trun on if the door dosen't closed well. | | 5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank. | | 6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water. | | 7. The chamber of the sterilizer is made of stainless stell. |
| | | | Specification: | Model | WS-400YDC | WS-280YDC | WS-200YDC | WS-150YDC | | Sterilizing chamber volume | 400L(φ700*1100mm) | 280L(φ600*1000mm) | 200L(φ515*1000mm) | 150L(φ440*1000mm) | | working pressure | 0.22 MPa | | working temperature | 134 Deg.C | | Adjustment of temperature | 40 Deg.C ~134 Deg.C | | Time of sterilization | 0-60 min | | Time of drying | 0-60 min | | Heat average | +/- 2 Deg.C | | Power | 18KW/380V 50Hz | 12KW/380V 50Hz | 9KW/380V 50Hz | 9KW/380V 50Hz | | Dimension (mm) | 1430*880*1830 | 1400*770*1780 | 1400*670*1650 | 1400*600*1300 | | Transport Dimension (mm) | 1600*1050*2100 | 1680*920*2100 | 1560*820*1850 | 1550*750*1850 | | G/N.W: | 530/420Kg | 465/365Kg | 350/260Kg | 320/240Kg |
| | |
|
: |
|
|
