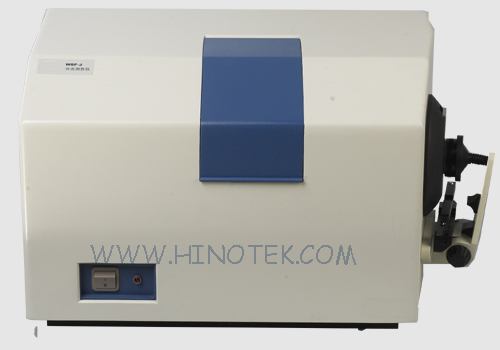

WSF-J Spectroscopical Color photometer |
|
| Characteristics: |
| * Wide application range and easy-to-operate feature. |
| * Measure reflection color and transmission color of objects and can test chromaticity, whiteness and color difference between two objects or two kinds of liquid. |
| * Only accept d/0 lighting specified by CIE. |
| * Display reflectance and transmittance of objects or liquid within the scope of visible light wave (380nm-760nm), and generate a spectral curve on reflectance and transmittance of objects or liquid, which greatly facilitates analysis on object color. |
| * Wide used in such industries as textile, dye, printing and dyeing, coating, paint, paper making, building materials, food, and printing. |
| |
| Specifications: |
* Lighting conditions: d/8 |
| * Light source: pulsed-xenon lamp |
| * Receiver: photodiode array, flat fielding grating |
| * Spectrum conditions: overall response is equivalent to tristimulus values X, Y, and Z calculated in corresponding functions under GB3978 standard illuminant D65, A, C and 10°, 2° view of field. |
| * Display method: computer display screen |
| * USB |
| * Measurement window: Ø20mm |
| * Wavelength range: 380nm~760nm |
| * Total uncertainty of wavelength (nm): 1 |
| * Wavelength repeatability (nm): 0.2 |
| * Total uncertainty of spectrum transmittance (%): 0.5 |
| * Repeatability of spectrum transmittance (%): 0.2 |
| * Total uncertainty of spectrum reflectance (%): 1.0 |
| * Repeatability of spectrum reflectance (%): 0.4 |
| * Instrument stability: ΔY≤0.2 |
| * Instrument repeatability: ΔY≤0.2；ΔE≤0.02 (standard white board, mean of 10 measurements) |
| * Total uncertainty of colorimetry: ΔY≤1 Δx, Δy≤0.002 |
| * Palette system: |
| * Color: X, Y, Z; Y, x, y; L*, a*, b*; L, a, b; L*, u*, v*; L*, c*, h* |
| * Color difference: Δ E (L*a*b*); ΔE (Lab); ΔE (L*u*v*); ΔL*, ΔC*, ΔH* |
| * Whiteness: W, T |
| * Computer system: Pentium 4 or above |
| * Software: WSF-J dedicated software, under Windows XP or 2000 operating system |
| * Weight (Gross): 24kg |
| * Overall dimensions: 680mm*430mm*430mm |
|
| |
