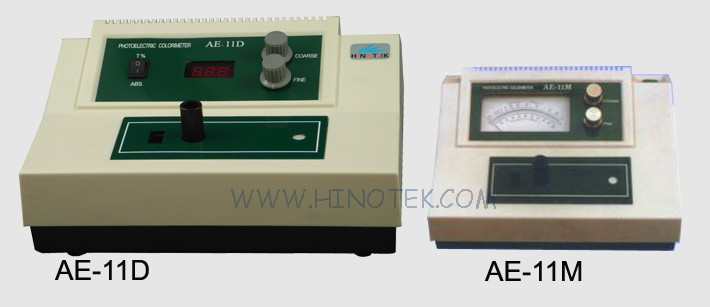

AE-11D(M) Photoelectric Colorimeter |
|
Characteristic:
New AE-11M & AE-11D are designed for simple operation with durable function and permit speedy accurate mesurement in routine analysis. The optical system consist of the lamp, Hear-absorption fillter, Lens and Diaphragm. The light traversing in this system falls on the ourrent renerating photo-cell which actuates a direct reading miereammeter(of AE-11M)or LED display(of AE-11D). |
| |
| Specification: |
| High Stability & Reproducibility: | Wavelength reproducibility +/- 5nm |
| Economy: | Consumes only 1.5ml of reagent |
| Dconomy: | Sillcon photo-cell |
| Filter: | 405,492,546,578,660nm; or 420,470,530,620,660(glass) |
| Wavelength Range: | 420-660nm |
| Photoelectric Range | Trafismittancy T% 1-100% in 100div, Absorption-log T 0-2.0 |
| Photoelectric Accuracy: | ±2T |
| Light Source: | 6V 0.5A tungsten lamp |
| Indicator: | AE-11M 250µA Micro-ammeter, AE-11D three-digit display |
| Power Supply: | 110V or 220V AC 10W |
| Dimenslon: | 280*220*122mm, 360*360*200 |
| Net Weight: | 3kg |
| |
