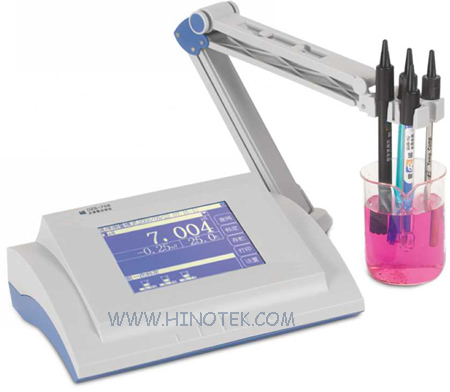

DZS-708 Multi-parameter Analyzer

DZS-708
General:

    DZS-708 multi-parameter analyzer (hereafter refers to meter) is a new laboratory analyze meter which contains ion measuring, conductive measuring, DO measuring and temperature measuring.

    It allows to inspecting the relevant parameter of above. It also allows users to select individual measuring according the practical needs. In which ion measuring allows to measure: Potential value, PH value (Or PX value), ion concentration. Conductive measuring can measure: Conductivity, resistivity, TDS, salinity. DO measuring can measure: electrode current, concentration & saturation of DO.


Character:
1. Ion measuring
*. Can measure potential value, PH value (Or PX value), and concentration of Ion.
*. Can measure several normal ions. Meter provides several normal ion models: H+, Ag+, Na+, K+, NH4+, CL-, F-, NO3-, BF4-, CN-, CU2+, PB2+, Ca2+, etc…For easy use.  User can match relevant ion selective electrode and reference electrode to measure corresponding ion concentration directly. When measuring finished, user can easily arrange the switching between different concentration units.
*. Apart from the ion unit provided by the meter, in case user needs to measure other ion, you can also set your own ion model to measure other ion.
*. Meter has the ability of automatic distinguishing standard buffer solution. You can select several PH standard buffer solutions to calibrate electrode. Total 10 different standard solutions are provided.
*. User can set own standard solution groups.
*. With one-point calibration, two-point calibration and multiple point calibration (Mostly 5 points) function.
*. With several concentration measuring modes: Direct read concentration mode, known adding measuring electrode, meter can ensure the high precision. The valid resolving power of potential can be reached to 0.01MV.

2. Conductive Measuring
*.Meter can measure conductivity, resistivity, total solid solution (TDS) and salinity.
*. Within full measuring range, meter has automatic temp, compensation, automatic calibration, automatic measuring range, and automatic frequency switching functions.
*. With calibration function, user could calibrate electrode constant or TDS switching coefficient.

3. Dissolved Oxygen Measuring
*. Meter can measure dissolved oxygen’s concentration, saturation and electrode current.
*. With automatic temperature compensation function.
*. With calibration function which can make zero oxygen calibration, full scale calibration, atmosphere calibration and salinity calibration.

4. Other Characteristic
*.  Big 5.7” touch screen for easy use.
*.  Apart from ion concentration, meter allows to measure all parameter in ion, conductive, DO and temperature simultaneously. Of cause, it also allow user to select necessary parameter for measuring.
*.  Meter supports GLP regulation.
I.
Meter requests user to set operator number and then can record down the procedure of all user.
II.
Can record down and print calibrating data.
III.
Can store 200 sets measuring data in each of PH measuring data, conductive measuring data, TDS measuring data, salinity measuring data and dissolved value including corresponding pX value and ion concentration value 100 sets of each.
IV.
Can search, print and delete measuring data.
V.
Can search the using parameter under present measuring mode and balance measuring mode to meet different user’s measuring requirements.
 With standard RS232 interface, can connect with PC.
VI.
With electricity cut off protection function which can protect the stored measuring data, calibrating data and set parameter to be saved when meter is turned off or abnormal electricity cut off occurred.

Main Specification
1. Measuring Range:


a. mV: (-1999.99~0) mV, (0~1999.99) mV;
b. pH/PX: (-2.000~19.999) pH/pX;
c. Concentration: Various concentration values in correspondence to potential measuring range and indicating electrode.
d. Conductivity: 0.000uS/cm~199.9mS/cm
e: Resistivity: 5.00 ohm.CM~20M ohm.CM
f: TDS: 0.000mg/L~19.99g/L
g: Salinity: (0.0~8.00)%
h: Dissolved oxygen concentration: (0.0~199.9)mg/L
i: Dissolved oxygen saturation: (0.0~199.9)%
j: Temperature: (-5.0~135.00) Degree Celsius

2. Resolving:


a. pH/pX: 0.01/0.001ph
b. mV: 0.1/0.01mv
c. dissolved Oxygen: 0.01 mg/L
d. Saturation: 0.1%.
e: Temperature: 0.1 Degree Celsius

3. Electronic unit accuracy:


a. pH/pX: ±0.002pX±1 bit
b. mV: ±0.03% (FS)
c. Ion concentration: ±0.5%±1 bit
d. Conductivity: ±0.5%(FS)±1 bit
e: TDS: ±0.5% (FS)±1 bit
f: Salinity: ±0.1%±1 bit
g: DO: ±0.10mg/L
h: DO saturation: ±1.0%
I: Temperature: ±0.3C±1 bit

4. Input impedance: ≥3*1012 ohm
5. Normal working condition:


a: Ambient temperature: (5.0~35.0) Degree Celsius
b. Relative humidity: ≤85%
c. Power supply: DC (9VDC, 800mA, insider-positive, outside-negative)
d. No performance-affected vibrations nearby.
e: No corrosive gases in the surrounding.
f. No strong electromagnetic interference except the geomagnetic fie.

6. Outside dimension (L*W*H): 290*200*70mm
7. Weight: About 1 KG.

:
