HJ,DF Series Magnetic Mixer | | | | HJ-3 Temperature-controlled
Magnetic Mixer | 78HW-1
Thermostatic Magnetic Mixer | 79-1 Magnetic
Heating Mixer |

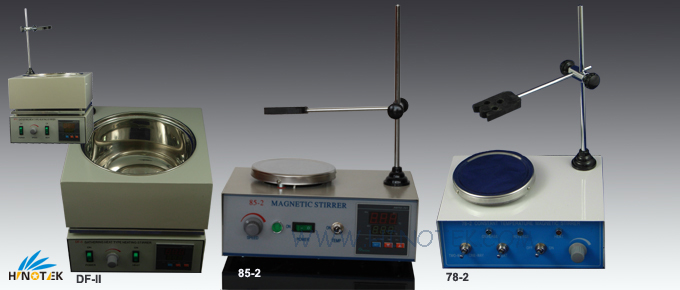

| | | | | DF-II Heat-concentrating Magnetic Mixer | 85-2 Magnetic Heating Mixer | 78-2 Magnetic Heating Mixer | | | |
Features: Magnetic heating mixer adopts quality DC motor with features of small noise and stable speed-adjustment and the entire-close heating tray can be used for assistant heating. Thermostatic magnetic mixer can set the temperature and temperature display, which can be used for long-term heating and its digital display is obvious and correct. The mixing blades specially made of polytetrafluoroethylene and quality magnetic steel can endure high temperature, resistant to wear and chemical corrosion and has strong magnetism, which can carry out mixing mission in the airtight vessel, so its use is very ideal and convenient.
Specification: |
Type | Description | Rotation Speed | Power of Motor | Heating Power | Temperature Control Range | Remarks | | 78-1 78-2 78HW-1 | Magnetic Heating Mixer | 0-2500rpm | 25W | 200W | RT-100 oC (Only 78HW-1) | 78-2 Bidirectional | 79-1 79-2
HJ-3 85-2 | Magnetic Heating Mixer | 0-2500rpm | 40W | 300W | RT-100 oC (For HJ-3 & 85-2) | 79-2 Bidirectional | | DF-II | Heat-concentrating Magnetic Mixer | 0-2500rpm | 40W | 500W | RT-300oC | Digital Display
water bath or oil bath | | HJ-4 HJ-2 HJ-4B HJ-6 | Multi-head Magnetic Mixer | 0-2400rpm | 25W | 200W | RT-100oC | HJ-4B Thermostatic |

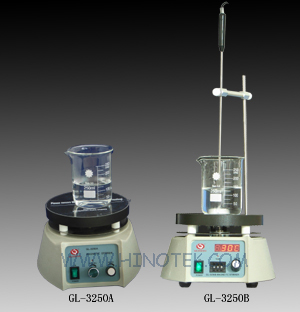

| | | | GL-3250 Series magnetic Mixer | | | | | Cast off the yoke of traditional mindset of domestic magnetic agitators to promote latest fully molding upgraded products in novel appearance. | | Novel Integrated shell: The integral shell is formed with anti-flaming enhanced type plastic, resisting heat, acid, alkali and organic solvents; | | Unique heating design: The die-casting aluminum alloy heating plate exteriorly pained with Teflon material is unique in heat conducting effect, high in coldness, heat and corrosion resistance. | | Double effects in heat insulating: The double-layer plate at the bottom of heating plate may fully raise heat efficiency and stop heat from conducting to main frame. | | Integrally upgrading: The integrally formed shell with top convexity design may effectively prevent carelessly overflowed fluid in agitating operation from flowing into inside the main frame; | | Visualized temperature indication: The unique digital circuit design may accurately select and control heating plate temperature or directly control the temperature of solutions in container by the sensor. | | | | Specification: |
Model | GL-3250A | GL-3250B | GL-3250C | | Speed | 100~1200 RPM | 100~1200 RPM | 100~1200 RPM | | Maxim agitation Capacity | 10L | 10L | 5L | | Temperature | RT~300C | RT~190C | No | | Protection Temp | 350oC | 220oC | 220oC | | Temp. control mode | Analogic | Digital | No | | Precision of Temp.Control | No | +/-2oC | NO | | External PT-100 Sensor | No | Yes | No | | Forward-backward rotation | No | Yes | No | | Diameter of heating plate | 150mm | 150mm | | | Maxim Heating function | 350W | 350W | | | Power | 220V/50Hz | 220V/50Hz | 220V/50Hz | | Overall dimension | 198*225*115mm | 198*225*115mm | 198*225*115mm | | Weight | 2.4KG | 2.4KG | 2.0KG |
|
: |
|
|
