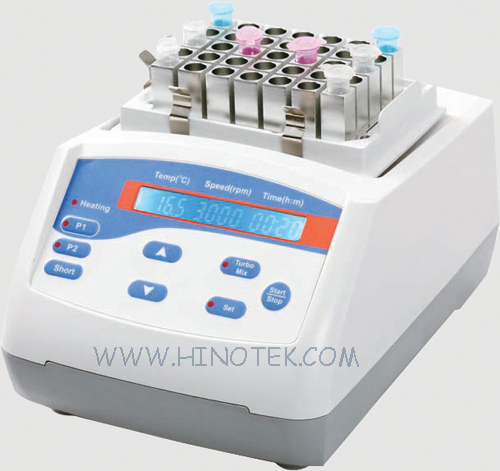

TMS-200/TMS-300 Turbo Thermo Shaker

The worldwide fastest and the most functions thermo-shaker for multiple applications.
1. Thermoshaker for microplates, tubes, and glass vials
2. Fast shaking and mixing up to 3,000rpm
3. 3D-Shake-Control: efficient and very fast controlled orbital mixing movements, eliminating any need for centrifugation after mixing.
4. Anti-Spill Technology: Perfectly controlled 3-dimensional mixing prevents spilling and lid wetting.
5. Highly accurate processing and Anti-Vibration Technology eliminate vibrations for a relaxed working environment.
6. 2 programmable soft keys, Integrated vortex and short mix functions
7. Very small, light, efficient and quiet
8. Adapter Plates:
   Microplates: - 96-, 384-,and 1536-well microplates/deep well plates/PCR plates
   Holder: - 0.2ml PCR tubes holder, 0.5ml tubes holder,1.5/2.0ml tubes holder
   - 15ml Micro tubes holder, - 50ml Micro tubes holder
   Block: - 10 types Aluminum blocks for user choosing
Technical Spec:
Model
TMS-200
TMS-300
Mixing Frequency:
300~3000 RPM
300~1700 RPM
Mixing orbit
2 nm
3 nm
Speed setting resolution
10 rpm increments
Maxing Accuracy
25 rpm
Short-Mix function
Yes
Temp:
Temp control range
RT+5~100°C
Temp Setting
0.1°C increment /From 5 ~ 100°C
Temp display accuracy
±0.1°C
Temp Accuracy
±0.25°C@37°C/±0.5°C@95°C
Heat-up Time:
<12 Min
Timer:
Timer Setting:
1 Min ~ 100 h
Timer Setting resolution
1 Min
Continuous working & audible alart
Yes
Programming
Programming Stored & Definable bottons: 2 & P1 and P2
Indicidual program capacity & internal memory 3 steps & Yes

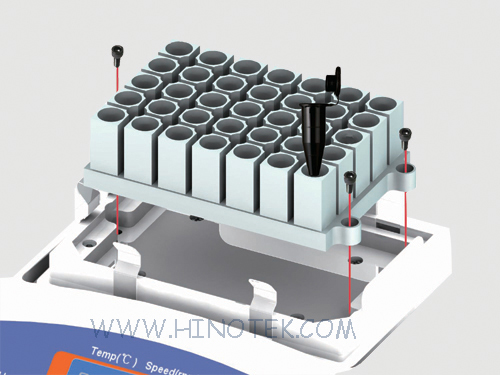

Optional Block

Type
Desc
A-200 96*0.2ml
B-200 54*0.5ml
C-200 35*1.5ml
D-200 35*2.0ml
E-200 15*0.5ml+20*1.5ml
F-200 24*Φ<12mm+20*1.5ml
G-200 32*0.2ml+25*1.5ml
H-200 32*0.2ml+10*0.5ml+15*1.5ml
I-200 103*67*30mm Bath Block
J-200 96*0.2ml Microplate
Mix-A 0.2ml PCR Tube Holder
Mix-B 0.5ml Tube Holder
Mix-C 1.5/2.0ml Tube Holder
Mix-D 8*15ml Tube Holder
Mix-E 3*50ml Tube Holder
