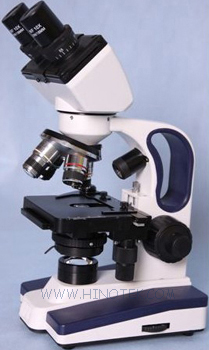

SME Series Biological Microscope | | SME-116M | | Specification: | Specification | Model | SME-116M | | Viewing Head | Sliding Binocular Head, Inclined at 45° | ● | | Eyepiece | WF10x | ● | | Objective | Achromatic 4x, 10x, 40x(s), 100x(s, oil) | ● | | Stage | Double layers mechanical stage, Stage size:104*95mm, Moving Range:50*15mm | ● | | Condenser | N.A.1.25 Abbe Condenser with iris diaphragm and filter | ● | | Focusing | Coaxial coarse & fine focusing adjustment, Fine focusing scale value 0.002mm | ● | | Light Source | Reflected rechargeable LED light, brightness adjustable | ● | | Transmitted rechargeable LED light, brightness adjustable | ● | | Packing | Foam + Carton packed | ● | | Optional Accessories | WF16X, WF20X eyepiece; | | 20X, 60X (s) objective; | | Monocular Head; Trinocular Head | | Incandescent Lamp 220V/20W or 110V/20W | | Wooden Packed or Aluminium Case packed |
| | | | | | | | | | | | | | | |
Specification | Model | SME-F6A | SME-F6D | SME-F6E | | Viewing Head | Monocular Inclined at 45°, 360°Rotatable | ● | | | | Compensation Free Binocular Head,Inclined at 30°(55mm-75mm) | | ● | | | Compensation Free Trinocular Head,Inclined at 30°(55mm-75mm) | | | ● | | Eyepiece | WF10x/18mm | ● | ● | ● | | Objective | Achromatic 4x, 10x, 40x(s), 100x(s, oil) | ● | ● | ● | | Stage | Double layers mechanical stage, Stage size:110*126mm, Moving Range:70*30mm | ● | ● | ● | | Condenser | N.A.1.25 Abbe Condenser with iris diaphragm and filter | ● | ● | ● | | Focusing | Coaxial coarse & fine focusing adjustment, Fine focusing scale value 0.002mm, Focusing Range 30mm | ● | ● | ● | | Light Source | Halogen bulb 6V/20W, AC 220V/110V | ● | ● | ● | Optinal
Accessory | Eyepiece:WF16x, WF20x, P16x | | Objective :20x, 60x(s) | | Reflective Mirror, Demonstration (Teching) Head | | CCD Adapter | | Compensation Free Binocular & Trinocular Head(48mm-75mm) | | LED illumination |
Specification | Model | SME-M | SME-L | SME-F | SME-F1 | SME-F1-100 | Viewing Head | Monoculer lnclined at 45o,360°Rotatable | | | ● | ● | ● | Monoculer lnclined at 45° | ● | ● | | | | Eyepiece | WF10X | ● | ● | ● | ● | ● | Objective | Achromatic 4X, 10X, 40X（s） | ● | ● | ● | ● | | | Achromatic 4X, 10X, 40X（s),100X(S,Oil) | | | | | ● | Stage | Plain stage with slide clips, Stage size:110mm*110mm | ● | ● | ● | | | Double layers mechanical stage, Stage size: 110mmX105mm, Moving range:70mm*30mm | | | | ● | ● | Condenser | Singlelens with Disc diaphragm | ● | ● | ● | | | N.A.1.25 Abbe Condenser with iris diaphragm and filter | | | | ● | ● | Focusing | Coarse Focusing Adjustment | ● | ● | | | | Coaxial coarse & fine focusing adjustment, Fine focusing scale value 0.002mm | | | ● | ● | ● | Light Source | Incandescent lamp, 220V/20W or 110V/20W | | | ● | ● | ● | Reflective Mirror | ● | ● | | | | | Optional Accessory | Eyepiece：WF16X, P16X | | Objective：20X, 60X (S), 100X(s)oil | | LED illumination |
|
