GC102AF/AT Gas Chromatograph |
| Features: |
| * Computer aided temperature control with high accuracy (less than ±0.1℃). |
| * All control and application parameters, including operation parameters of the detector, can be set up through keyboard. Functions, such as self-diagnosis, switch-off protection, document storage and transaction, limit temperature setup thermal trip valve setup, and FID auto-ignition are incorporated inside of the instrument. |
| * Large-screen LCD display, supporting Chinese characters, can accurately and clearly present all temperature control setup values, actual values, TCD working electricity supply, sensitivity of FID magnifier, and etc. |
| * The instrument supports packed column i.e. on-column sample injection. It is compatible with such devices as instantaneous vaporizing sample injection, gas sample injection with gas sample injection valves, and 0.53mm large diameter capillary column direct sampler. |
| * Open-end computer system can apply RS-232 interface and N-2000 chromatogram workstation to achieve dual path communication control and data processing. |
| * Large capacity column (300mm×280mm×270mm) is easy to be installed with packed column and large diameter capillary column. |
| |
| Performance Indicators: |
| Temperature Control: |
| 1. Temperature control areas: gas chromatogram column, sampler, detector |
| 2. Temperature control range: 15-399°C of room temperature (increment by 1°C) |
| 3. Temperature control accuracy: less than ±0.1°C (measured at 200°C) |
| Flame Ionization Detector (FID): |
| 1. Detection limit: Mt≤1*10-10g/s（sample C16） |
| 2. Drift: ≤2*10-12A/h |
| Thermal Conductivity Detector (TCD): |
| 1. Sensitivity: S≥1500mV.ml/mg（carrier gas: H2; sample: n-Hexadecane) |
| 2. Baseline noise: ≤20μV |
| 3. Baseline drift: ≤50μV/h |
| |

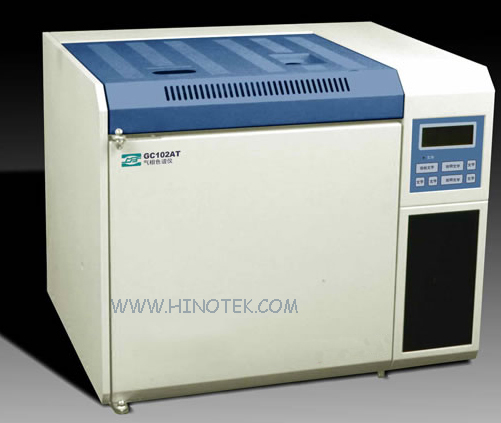

| GC102AT/GC102AF |
| Optional accessories: |
| 1.CDP-4A data processor |
| 2.Software with I/O port |
| |
| Overall dimension & weight: |
| Shipping package dimension:950*670*770mm |
| Net Weight:45kg |
| Gross Weight: 65kg |
| |
