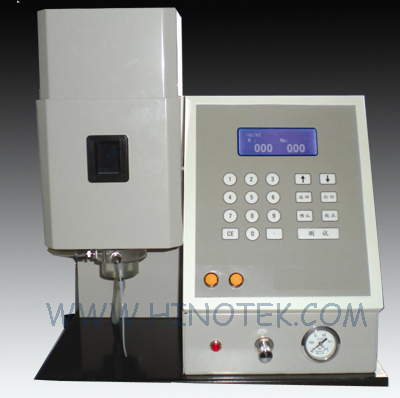

FP6510 Flame Spectrophotometer |
|
| General Features: |
| 1) The instrument is capable of measuring three elements at the same time among five elements including Na, K, Li, Ca and Ba; |
| 2) The series of product is comprehensive and the end user can use it directly with preparing gas source of propane, butane and petroleum gas only; |
| 3) Application areas: beverage, chemical manufacturing, clinical detection, agriculture, food detection, mineral extraction, oil industry, petroleum, chemical industry and soil analysis. |
| |
| Structural Characteristics: |
| 1) Five filters (Na, K, Li, Ca, and Ba) are equipped with five-channel detection function. Three elements can be detected at the same time and the content of three elements can be displayed as well. |
| 2) The touch panel has number keys. |
| 3) Single point calibration. The calibrated curve can be saved in the device. |
| 4) RS232 interface. The device is able to connect extension equipment, such as, computer and printer. |
| 5) A mist separator is provided. |
| |
| Technical Characteristics: |
| 1) Linear processing: each of the five elements can be processed with the application software; and single point calibration is prepared. |
| 2) Sample injection rate: 4-6ml/min |
| 3) The best measurement range: |
| | Na: 0 - 100ppm; |
| | K: 0 - 100ppm; |
| | Li: 0 - 100ppm; |
| | Ca: 0-1000ppm; |
| | Ba: 0 - 3000ppm; |
| 4) Repeatability: when the equipment is stable for about 30mins, the deviation factor is not higher than 3% (the concentration of sample is 100ppm or even less); |
| 5) Detection limit: |
| | Na: 0.01ppm; |
| | K: 0.01ppm; |
| | Li: 0.025ppm; |
| | Ca: 0.1ppm; |
| | Ba: 10ppm; |
| 6) Time stability: less than 15s (after the sample is burnt in the flame); |
| 7) Drifting: ≤3% (when the equipment is stable for about 30mins); |
| 8) Linear: better than the median value of optimal result by 2% (single point calibration); |
| 9) Two linear calibration methods: subsection method, and quadric fitting method; |
| |
| Download E-Manual: http://www.hinotek.com/dmdocuments/manual/flame-photometer/Hinotek-FP640-Flamephotometer-manual.pdf |
| |
| |
